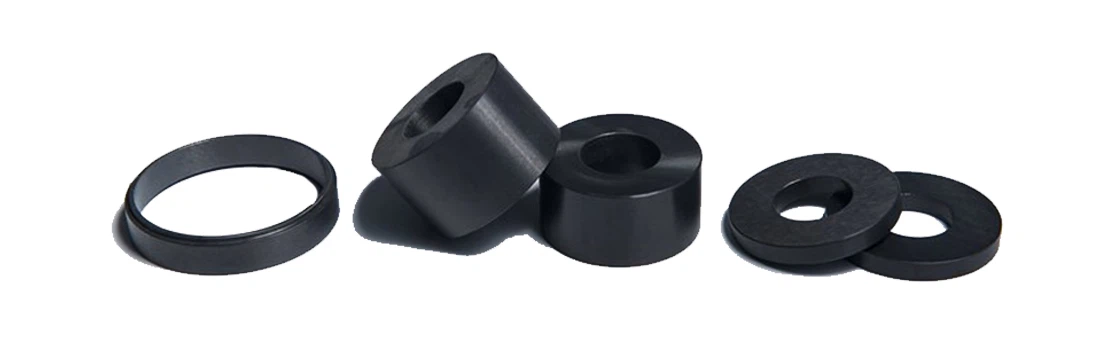

Silicon Nitride Ceramic Ring
Name：Silicon Nitride Ceramic Ring
Composition: Silicon nitride
Size: Can be customized according to customer requirements
Payment:
30% T/T in advance for more than USD2000, balance pay before shipment.
100% T/T payment for amount less than USD2000.
Description
Silicon nitride is an important structural ceramic material. It is a superhard material, an atomic crystal, which has the characteristics of lubricated by itself, resistant to oxidation at high temperatures, resistant to wear and tear, and resistant to the cold and heat shock. In addition, when heated in the air to more than 1000℃, it will not break even if it is cooled sharply first and then heated sharply. Because of its excellent properties, the silicon nitride ceramic rings are often used to manufacture mechanical components such as bearings, turbine blades, mechanical sealing rings and permanent moulds.
Furthermore, if the heating surface of engine parts is made of silicon nitride ceramic which resistant to high temperature and heat transfer, it can not only improve the quality of diesel engine and save fuel, but also improve the thermal efficiency.
Silicon nitride ceramic ring has good stability, high temperature resistance, good wear reistance and good corrosion resistance, so it is often used in the environment where metal materials are not competent.
Product Specification:
| Item | Unit | Silicon Nitride /Si3N4 |
| Rockwell hardness | HRA | ≥75 |
| Volume density | g/cm3 | 3.25 |
| Electric volume resistivity | Ω.cm | 1014 |
| Breaking tenacity | Mpa m1/2 | 6~9 |
| Elasticity modulus | Gpa | 300~320 |
| Thermal expansivity | m/K *10-6/℃ | 3.1~3.3 |
| Thermal conductivity | w/(m.k) | 15~20 |
| Weibull modulus | m | 12~15 |
Product Features:
1, High hardness, good wear resistance, low thermal conductivity, good chemical stability and high corrosion resistance.
2, High fire resistance and the maximum melting point is 1900℃, so it is one of the best refractory materials in nature.
3, Good chemical stability and can resistant to acid corrosion at high temperature.
4, High strength, good wear resistance, good chemical stability, good biocompatibility and high density.
5, Silicon nitride ceramic is an inorganic non-metallic material which is resistant to high temperature, abrasion and corrosion.
Product Application:
1, Can be used in chemical industry.
2, Environmental protection, oil industry and gas industry.
3, Can be used for distillation and absorption of liquids and gases
4, Vacuum evaporating device and crude oil distillation device.
5, Desulfurization system, gas-liquid separator, liquid separator, etc
6, Widely used in Machinery, electronics, semiconductor, chemical, petroleum, smelting and other industries.
Product Packing:
FAQ:
Q: Samples are free?
A: Yes, we could provide samples with free of cost.
Q: How many days for sampling?
A: 7~10 days for regular size we have.
Q: How many days for production?
A: 30~60 days according to the size and quantity.
Q: Could we put our own logo?
A: Sure, customers logo can be made by laser engraved embossed transfer printing.
