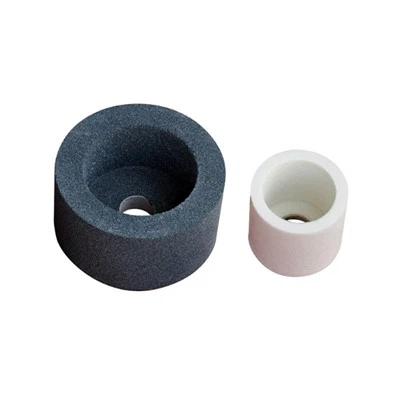

Toolroom Grinding Wheel

Abrasive toolroom grinding involes the production, maintenance and repair of cutting tools and machinery parts used in all types of manufacturing operations. These toolroom grinding wheels are commonly used for surface grinding and tool and cutter grinding.

Send Inquiry

Description

Vitrified grinding wheel strength manufacturer

Toolroom grinding wheels is very popular grinding wheel to process the thread, cellphone mold edge, saw, drills and slotting... which include dish grinding wheel, cup grinding wheel, taper grinding wheels, bowl grinding wheels ...

Send Inquiry Now

Product Model

The following are common models, others can be customized.

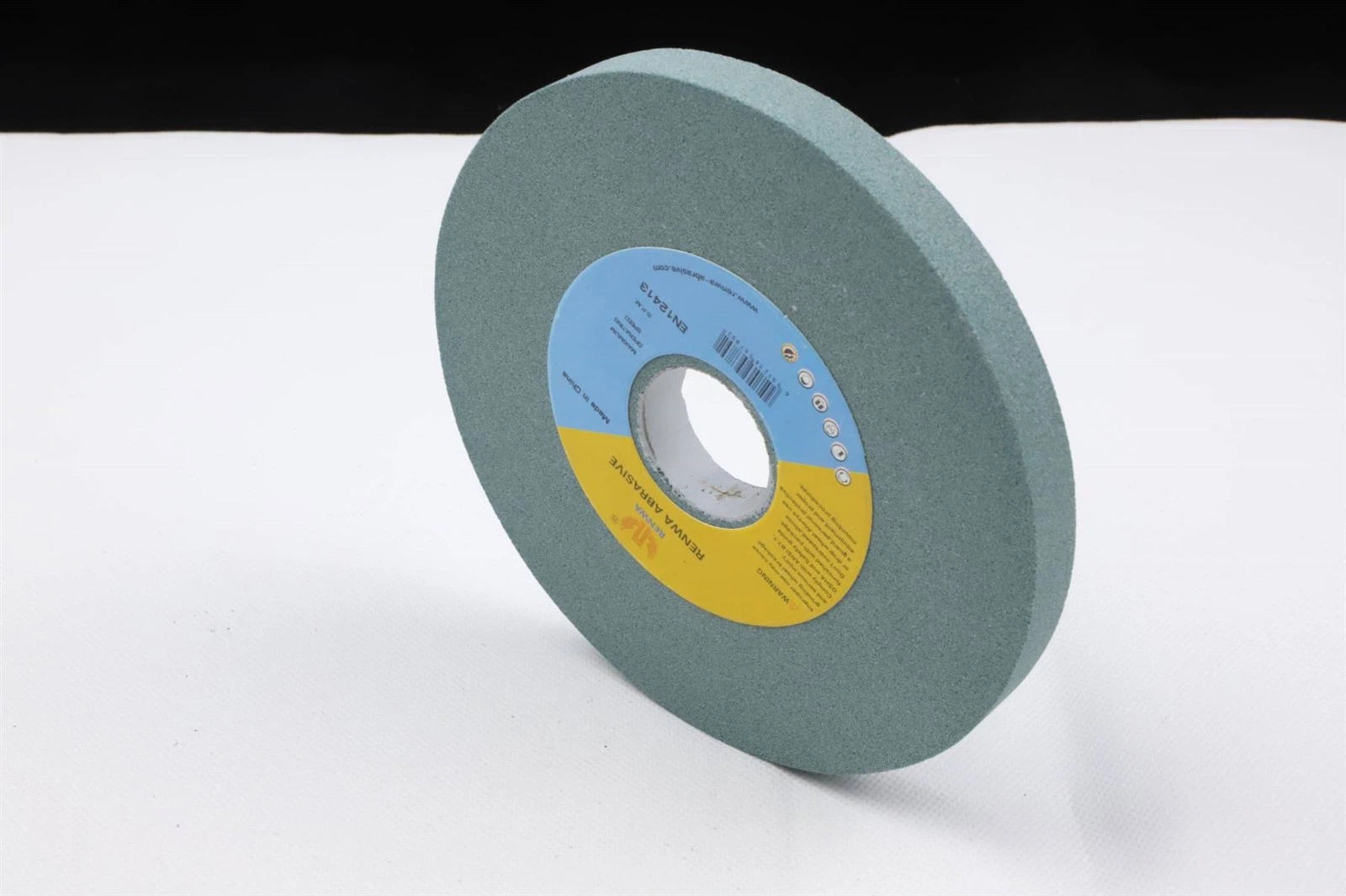

	Type 1	Type 5	Type 7

Standard Dimensions

Type	Diameter (D)		Recess Dimensions(P)		Thickness(T)		Bore(H)
	Inches	mm	Inches	mm	Inches	mm	Inches	mm
Type1	6	150			1/4\|1/2	6.3\|12.7	1-1/4	31.75
	7	177			1/4\|3/8\|1/2	6.3\|10\|12.7	1-1/4	31.75
	8	203.2			1/4\|1/2	6.3\|12.7	1-1/4	31.75
	10	254			3/4\|1	19.05\|25.4	2\|3\|5	50.8\|76.2 \|127
	12	305			1	25.4	3\|5	76.2\|127
	14	356			1\|1-1/2	25.4\|38	3\|5	76.2\|127
Type5	7	177	r/1/s3x1/4	r/1/s76.2x6.3	3-4	19.05	1-1/4	31.75
	7	177	r/1/s3x1/4	r/1/s76.2x12.7	1	25.4	1-1/4	31.75
	8	203.2	r/1/s3x1/4	r/1/s76.2x6.3	3-4	19.05	1-1/4	31.75
	8	203.2	r/1/s3x1/4	R/1/s76.2x12.7	1	25.4	1-1/4	31.75
	12	305	r/1/s71/2x1/2	r/1/s190x12.7	1-1/2\|2	38\|50.8	3\|5	76.2\|127
	14	356	r/1/s8x1/2	r/1/s200x12.7	1-1/2	38	5	127
	14	356	r/1/s8x1	r/1/s200x25	r/1/s200x25	50.3	5	127
Type7	12	305	r/2/s71/2x1/2	r/2/s190x12.7	2	50.8	3\|5	76.2\|127
Type7	14	356	r/2/s8x3/8	r/2/s200x10	2	50.8	5	127

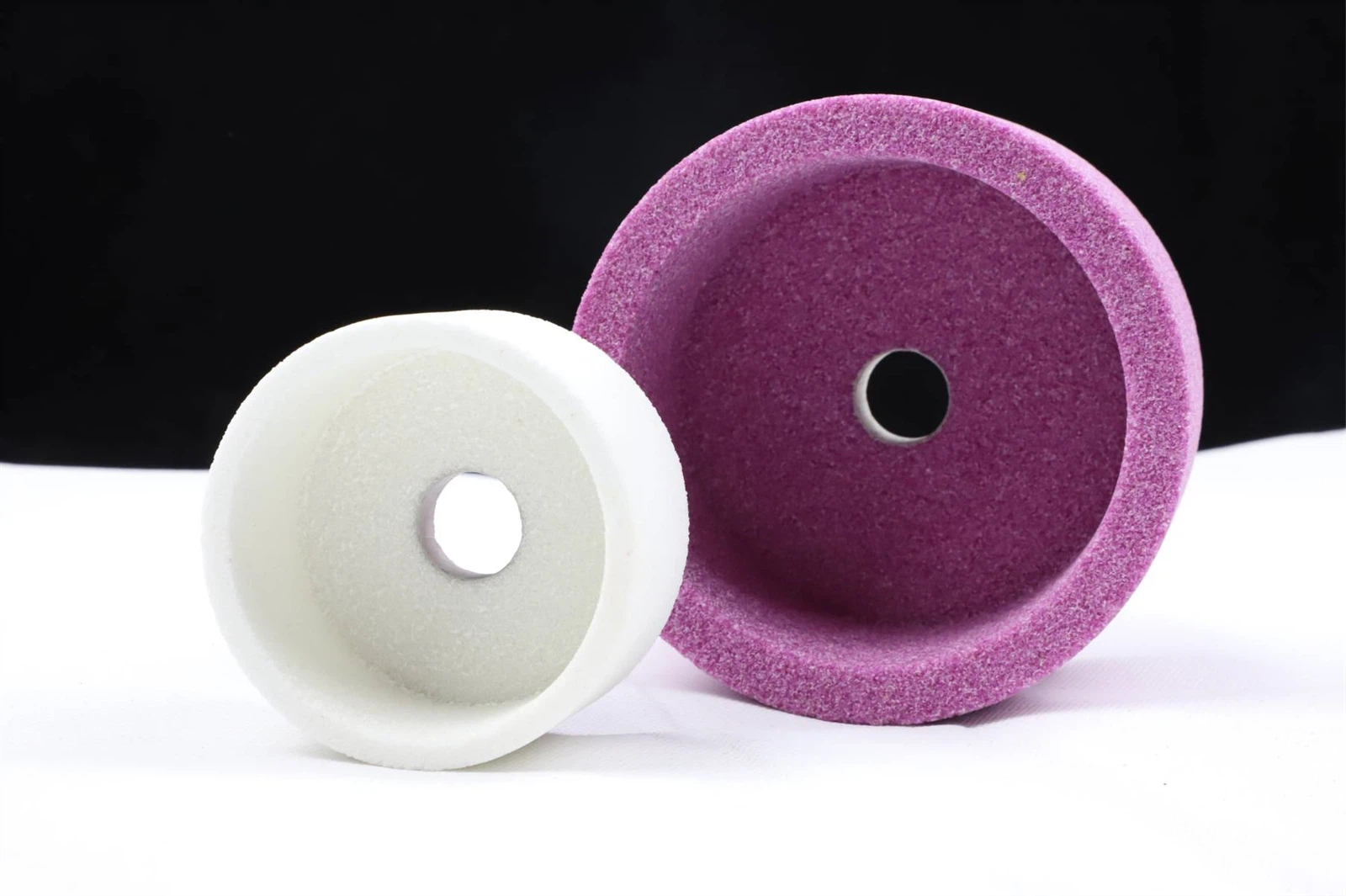

Straight Cup Wheels\|Type 6
D		T		H		W		E
Inches	mm	Inches	mm	Inches	mm	Inches	mm	Inches		mm
4	102	1-1/2\|2	38\|51	3/4\|1-1/4	20\|31.75	5/16,3/8	8\|10	3/8		10
5	127	1-1/2\|2	38\|51	1-1/4	31.75	3/8	10	3/8		10
6	150	2	51	1-1/4	31.75	1/2	12.7	1/2		12.7

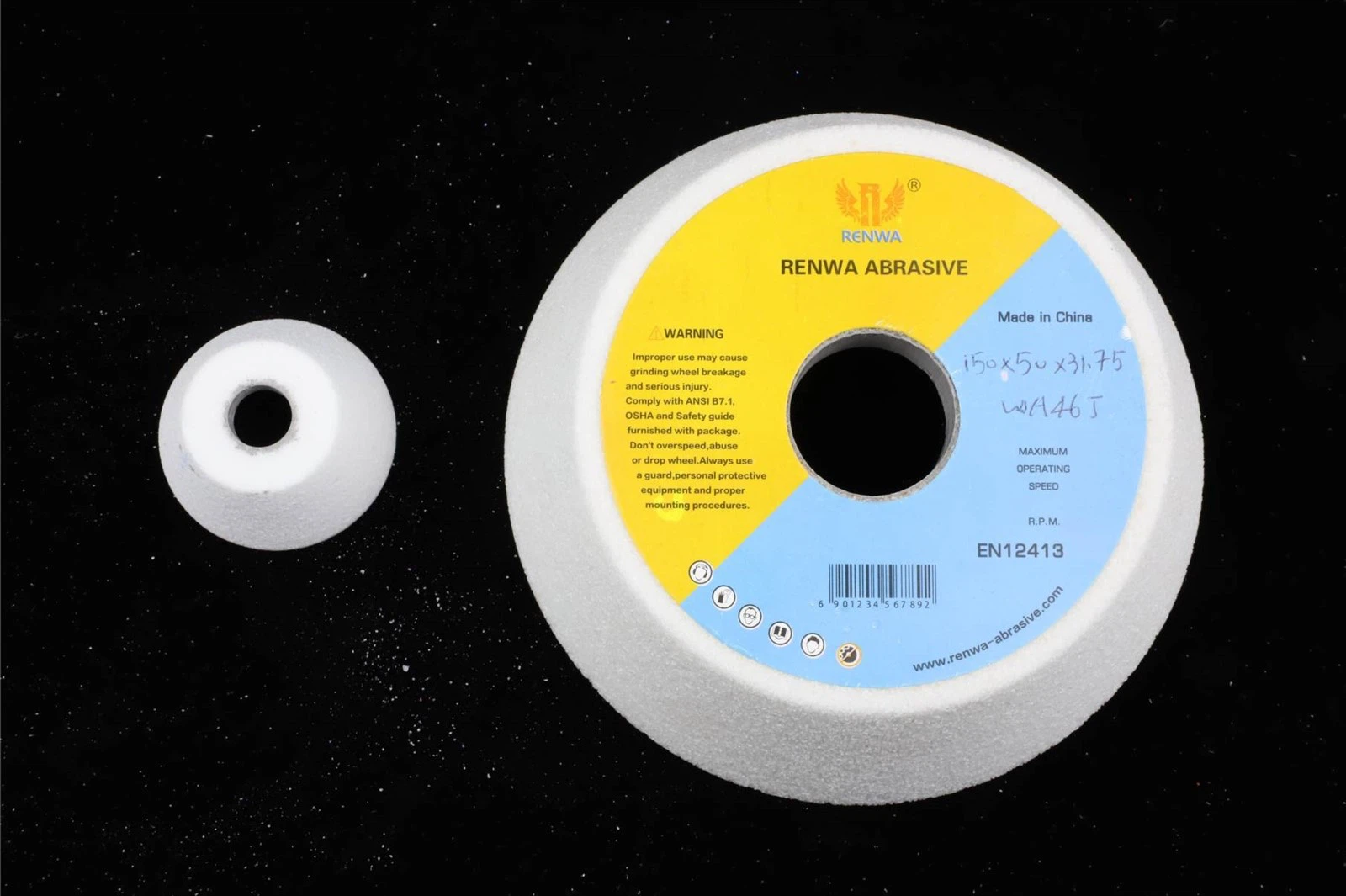

Flared Cup Wheels\|Type 11
D		T		H		W		E		J		K
Inches	mm	Inches	mm	Inches	mm	Inches	mm	Inches	mm	Inches	mm	Inches	mm
4	102	1-1/2\|2	38\|51	3/4\|1-1/4	20\|31.75	5/16	8	1/2	12.7	3-1/14	82	2-5/8	67
5	127	1-3/4\|2	45\|51	1-1/4	31.75	5/16	8	1/2	12.7	3-3/4	95	3	78
6	150	2	51	11/4	31.75	3/8	10	1/2	12.7	4-1/2	115	3-3/4	95

Dish Grinding Wheels\|Type 12
D		T		H		W		E		J		K
4	102	1/2	12.7	1/2\|3/4\|1-1/4	12.7\|20\|31.75	3/16	5	1/4	6.5	2	51	1/8	3
5	127	1/2	12.7	1-1/4	31.75	1/4	6.5	1/4	6.5	2-1/2	63	1/8	3
6	150	1/2	12.7	1-1/4	31.75	3/8	10	5/16	8	3	78	1/8	3.2
7	177	1/2	12.7	1-1/4	31.75	1/2	13	5/16	8	3-1/2	90	1/8	3.2

Recommended Specifications

	Type Of Grinding	Wheel Type	Specificabion
End Mills	Sharpening	Type 12	WA100K7V
End Mills	Grinding	Type6&11	WA100K7V
Milling Cutters	Sharpening	Type 12	WA60K7V
Milling Cutters	Grinding	Type6&11	PA80K7V
Carbide Tools	Grinding&Sharpening	Type 1,6,11,12	GC6017V
HSS &Tool Steel	Grinding &Sharpening	Type 1,6,11,12	PA46J7V

Product Advantages

The abrasives and bonds in our toolroom grinding wheels have all been carefully selected and preengineered to produce the most versatile wheel performance possible. Typical applications are surface grinding, tool and cutter grinding, drill sharpening, cylindrical grinding. The toolroom grinding wheel are made from SG, 35A and 38A Bond.

Excellent form retention

Dimensional accuracy

Surface Finish

Reasonable and homogeneous structure

Strong cutting performance

Not burning workpieces

Product Application

Product Performance : Cast iron, SG iron, Alloys, Steel burrs, Welding burrs, Tool steel.

Versatile

Toolroom grinding wheels are used as surface, cylindrical, tool sharpening, hand grinders , toolroom grinding wheels have a high productivity in terms of material removal, required finish and wheel life. They are available in aluminium oxide, white aluminum, zirconia , ceramic alumina, green silicon carbide, for all types of ferrous and non ferrous jobs metal removal operations.
These wheels can be used with a stationery bench grinder, very ideal for sharpening of tools, drill bits, knives, chisels, Lathe jaws, cutting wheels, cutting tools, carbide bits.
