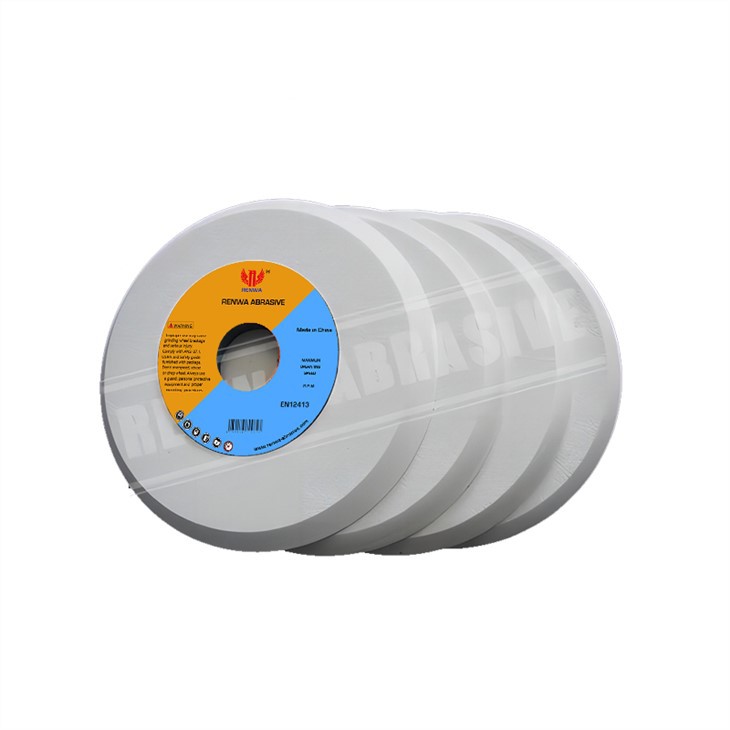

One Side Tapered Grinding Wheel
Name: One Side Tapered Grinding Wheel
Composition: White Fused Alumina, Pink Fused Alumina
Size: Can be customized according to customer requirements
Payment:
30% T/T in advance for more than USD2000, balance pay before shipment.
100% T/T payment for amount less than USD2000.
Description
One side tapered grinding wheels also named C face grinding wheel, which is generally made by white fused alumina, pink fused alumina either ruby grains or pink , or white grains mix with Cobalt, it could be homogeneous structure to improve the cooling effect. strong cutting performance, no burn working-pieces.
It is important to maintaince the form of edge and decrease wheel dressing to save cost and time.
Product Specification:
The most popular grinding wheel with side tapered are made by brown fused alumina (corundum), grit from 60 to 120.
Diameter | Thickness | H | J | U |
75 | 6 | 13 | 30 | 2 |
80 | 13 | 20 | 45 | 3 |
100 | 6.8 | 20 | 55 | 2 |
125 | 8 | 32 | 57 | 2 |
10 | 65 | |||
150 | 10 | 59 | ||
13 | 68 | |||
175 | 6 | 141 | 3 | |
8 | 118 | |||
10 | 123 | |||
200 | 10 | 127 | ||
13 | 87 | |||
16 | 103 | |||
250 | 10 | 170 | ||
13 | 136 | |||
16 | 102 | |||
300 | 10 | 32 127 | 248 | 3 |
13 | 225 | |||
16 | 203 | |||
600 | 25 | 305 | 552 | 5 |
40 | 540 | 15 | ||
750 | 50 | 704 | 10 |
Schematic：
Product Features:
As one kind of tool rooms grinding wheels, one side tapered grinding wheel have characteristics of uniform structure, good elf-sharpening and long grinding life.
Product Application:
They are mainly used for sharpening milling cutter, reamers, expanding drills, broaches, paper cutting knife, tobacco cutter, plate-shaped lathe tool, slotting cutter, drill, hobbing cutter, saw-tooth, and so on.
Product Packing:
FAQ:
Q: Samples are free?
A: Yes, we could provide samples with free of cost.
Q: How many days for sampling?
A: 7~10 days for regular size we have.
Q: How many days for production?
A: 30~60 days according to the size and quantity.
Q: Could we put our own logo?
A: Sure, customers logo can be made by laser engraved embossed transfer printing.
