Alumina Ceramic Nozzle

In sandblasting, ceramic nozzles are used to direct a high rate of abrasive media (such as sand or steel balls) at the surface of a workpiece to remove coatings, rust, or contaminants. Sandblasting and dispersion nozzles are made of alumina ceramics or composites consisting of alumina and chromium oxide that have very high hardness and wear resistance.

The materials for making sandblasting nozzles are cast iron, steel, cemented carbide and alumina ceramic. Cast iron and steel sandblasting nozzles are simple to manufacture, it is low cost but very low life, and they are not suitable for large-scale operations. Generally speaking, under the same conditions, the life time of metal sandblasting nozzle is not as good as that of cemented carbide sandblasting nozzle, and the life of cemented carbide sandblasting nozzle is not as good as that of alumina ceramic nozzle.

Alumina ceramic nozzle is one of the ideal abrasion resistant blasting nozzle used in various application, thanks to the super high hardness, excellent fracture toughness, the life time is much longer than that of metal and cemented carbide.





Product Specification:

Description	Nozzle ID (mm)	OD (mm) d	OD (mm) D	Length (mm) L
Alumina Ceramic Nozzle No.9	9	20	30	62.5
Length of Use	Steel/Grit shot 20-40 Sand 10-30 Aluminum oxide 1-4
Maximum Used Temperature	1800 ºC (3272ºF)
Hardness	Mohs 9.0, HRA 80-90
Wear Resistance Wear Rate	0.68 mm3·m-2·h-1
Electrical Resistivity	10∧14 Ohm.Cm
High Polished Surface	Rz0.8(Ra0.1)
Compressive Strength	Max 2300MPa
Fracture Toughness	Max 10 MPa.m1/2



Product Features:

1. Refractory, high temperature resistance

2. High voltage, good insulation performance

3. Superior mechanical strength, high fracture toughness

4. Pressure resistance, high compressive strength

5. Anti-high corrosion resistance, such as acid alkali resistance

6. Long service life



Product Application:

Alumina ceramic nozzles for sandblasting are made for specific uses depending on the kind of abrasive used and application. Nozzles are available for both light and heavy duty jobs and are designed to give a uniform finish to the object they are being used on.

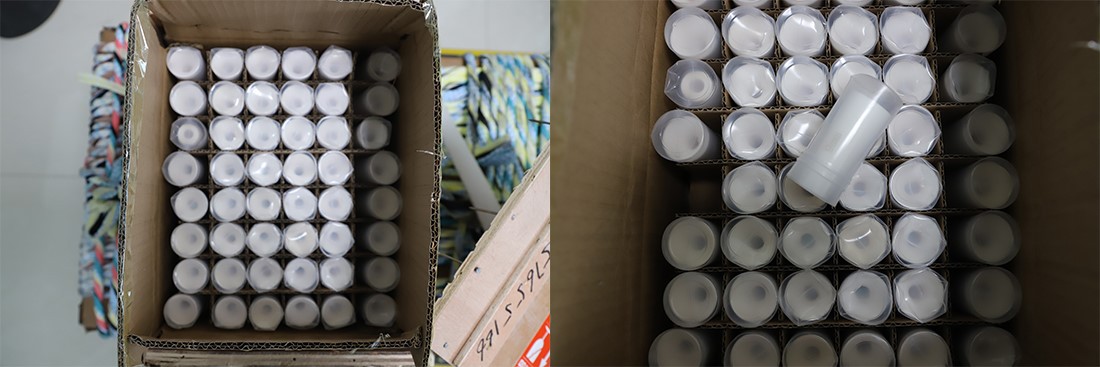

Product Packing:



FAQ:

Q: Samples are free?

A: Yes, we could provide samples with free of cost.

Q: How many days for sampling?

A: 7~10 days for regular size we have.

Q: How many days for production?

A: 30~60 days according to the size and quantity.

Q: Could we put our own logo?

A: Sure, customers logo can be made by laser engraved embossed transfer printing.
