Oval Mounted Point
Name: Oval Mounted Point
Composition: Corundum, Aluminum oxide, Carborundum, Silicon carbide
Size: Can be customized according to customer requirements
Payment:
30% T/T in advance for more than USD2000, balance pay before shipment.
100% T/T payment for amount less than USD2000.
Description

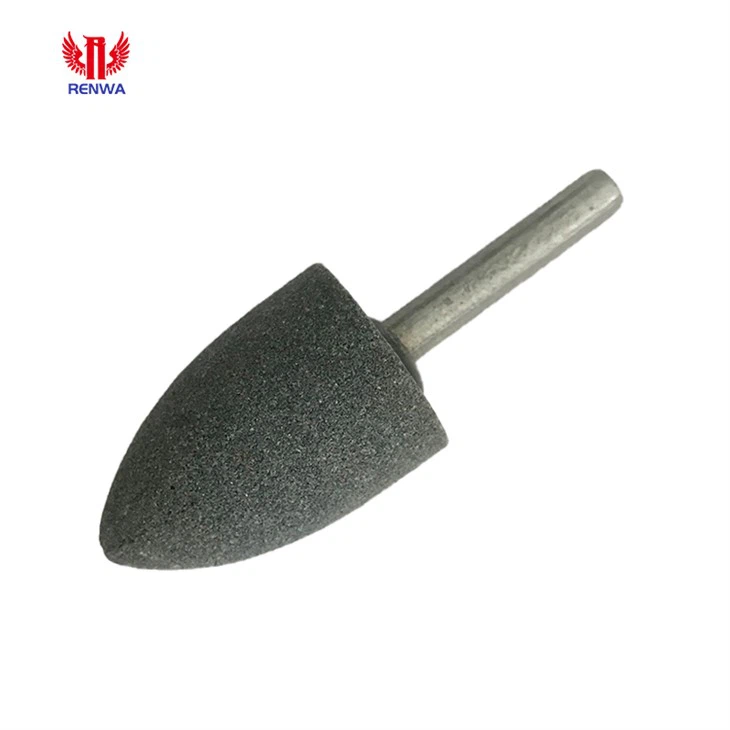

Oval mounted point is one kind of mounted point with vitrified bonded, metal pink in the center. Mainly grinding various metals for grinding the inner wall of the hole and dressing the mold.
Product Specification:
|
Code |
Diameter (mm) |
Height (mm) |
Diameter-pin (mm) |
Other Size | |
|
B1 |
3 |
7 |
3 |
2.35 |
|
|
B2 |
4 |
10 |
3 |
2.35 |
|
|
B3 |
5 |
11 |
3 |
2.35 |
|
|
B4 |
6 |
12 |
3 |
2.35 |
|
|
B5 |
8 |
15 |
3 |
2.35 |
|
|
B6 |
10 |
18 |
3 |
2.35 |
|
|
B7 |
12 |
19 |
3 |
2.35 |
|
|
B8 |
6 |
20 |
3 |
2.35 |
|
|
B9 |
7 |
20 |
3 |
2.35 |
|
|
B10 |
8 |
20 |
3 |
2.35 |
|
|
B11 |
9.5 |
20 |
3 |
2.35 |
|
|
B12 |
6 |
26 |
3 |
2.35 |
|
|
B13 |
7 |
26 |
3 |
2.35 |
|
|
B14 |
8 |
26 |
3 |
2.35 |
|
|
B15 |
9.5 |
26 |
3 |
2.35 |
|
|
B16 |
6.5 |
25 |
6 |
6.35 |
|
|
B17 |
8 |
25 |
6 |
6.35 |
|
|
B18 |
9.5 |
25 |
6 |
6.35 |
|
|
B19 |
12.5 |
25 |
6 |
6.35 |
|
|
B20 |
16 |
28 |
6 |
6.35 |
|
|
B21 |
20 |
32 |
6 |
6.35 |
|
|
B22 |
25 |
45 |
6 |
6.35 |
|
Product Features:
1. Shape: Oval mounted point has an elliptical shape with sharp ends.
2. Material: It is typically composed of abrasive particles and a bonding agent, with abrasive particles such as silicon carbide, aluminum oxide, etc.
3. High hardness: The abrasive particles of the mounted point have high hardness, making it suitable for processing materials of various hardness.
4. Wear resistance: The abrasive particles of the mounted point have good wear resistance, resulting in a longer service life.
5. Efficient grinding: The design of the oval shape makes it suitable for precise grinding and polishing tasks.
Product Application:
1. Metal processing: Oval mounted point is used for rough grinding, polishing, and deburring in metalworking processes. It can grind metal surfaces, remove rust, oxides, and uneven surface layers.
2. Woodworking: It is also used in woodworking for trimming, repairing, and polishing the surfaces of wooden products.
3. Glass processing: In glass artistry, it is used for cutting, grinding, and polishing glass edges, as well as repairing scratches and damages on glass surfaces.
4. Mold manufacturing: In the mold manufacturing process, it is used for repairing, grinding, and polishing the surfaces of molds to improve their quality and precision.
5. Ceramic processing: It is used for grinding and finishing ceramic products, enhancing surface smoothness and quality.
Product Packing:
FAQ:
Q: Samples are free?
A: Yes, we could provide samples with free of cost.
Q: How many days for sampling?
A: 7~10 days for regular size we have.
Q: How many days for production?
A: 30-60 days according to the size and quantity.
Q: Could we put our own logo?
A: Sure, customers logo can be made by laser engraved embossed transfer printing.
