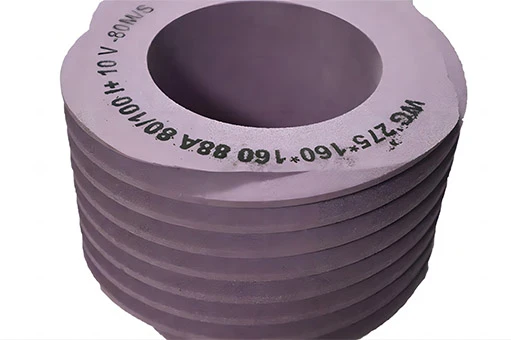

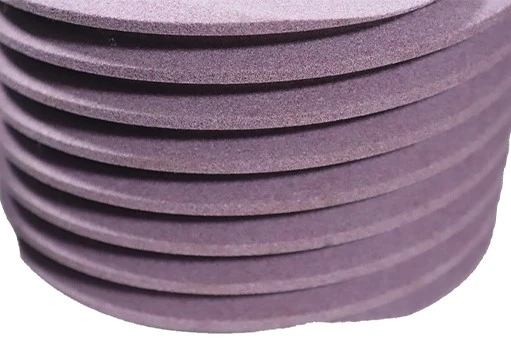

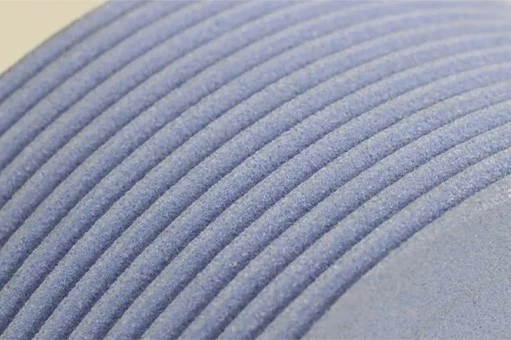

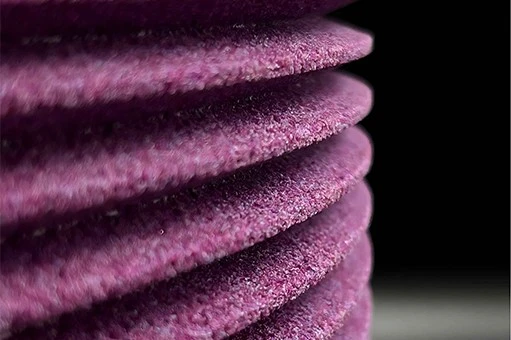

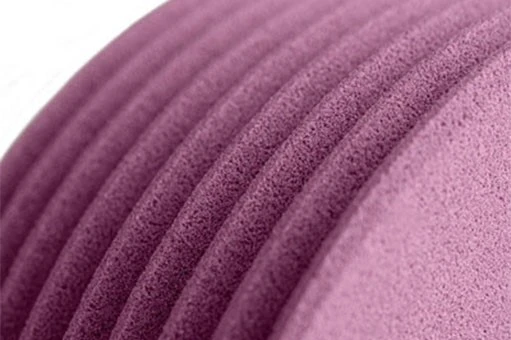

Worm Grinding Wheel
Our worm grinding wheel is developed specifically for precision grinding, combining a uniform wheel structure with good self-sharpening behavior and reliable form retention. During grinding, the wheel needs to remove material efficiently without losing its intended profile too quickly. At the same time, excessive grinding heat can affect the workpiece surface and may lead to unwanted burning or cracks. The wheel is therefore designed to provide a stable balance between cutting performance, profile maintenance, and grinding life.
Description
What Makes a Worm Grinding Wheel Different?
The geometry of the workpiece places special demands on the grinding wheel throughout the process.
Product Overview
Our worm grinding wheel is manufactured with an advanced formulation and abrasive-tool production process to provide good structural uniformity and stable working characteristics. Its form-grinding capability helps it maintain the required grinding geometry during extended operation, while its self-sharpening behavior helps expose fresh cutting edges as the abrasive works.
This combination is particularly useful when grinding components where dimensional consistency and tooth-form accuracy cannot be compromised.
Products Specification
| Diameter | Thickness | Hole |
| 220 | 180 | 76.2/90 |
| 240 | 230 | 110 |
| 250 | 50 | 127 |
| 275 | 125 | 160 |
| 300 | 63/80/100/125/145 | |
| 350 | 63/84/104/125/150 | |
| 400 | 84/104 | 203 |
| 450 | 80/100/125 | |
| Typical Grinding Wheel | 400*100*203SA/F60JV35/s
400*100*203PA/F80JV35/s |
|
Key Performance Benefits
The focus is on maintaining predictable grinding behavior from the beginning of the operation to the end.
Stable Wheel Structure
A uniform internal structure helps the wheel work consistently across the grinding surface. This is important for worm grinding because uneven wheel behavior can influence both the grinding force and the finished tooth profile.
Good Self-Sharpening
As grinding progresses, fresh abrasive cutting points can become available through controlled wear. This helps the wheel maintain its cutting ability instead of becoming excessively dull during operation.
Reliable Form Retention
For worm shafts and worm gears, maintaining the intended grinding profile is critical. The wheel is designed with good form-holding capability, helping reduce unwanted changes in grinding geometry during use.
High Grinding Efficiency
A well-balanced combination of cutting performance and wheel structure allows the wheel to remove material effectively while maintaining a stable grinding process. This can be especially valuable in production environments where consistent cycle performance is required.
Reduced Risk of Workpiece Burning
Grinding heat is an important concern when working with precision transmission components. The wheel is designed to support stable cutting and reduce the tendency toward excessive heat generation when the grinding process is properly matched to the application.
Long Grinding Life
The combination of structural uniformity, self-sharpening performance, and form retention contributes to longer usable grinding performance. This can reduce unnecessary wheel changes and help keep production more consistent.

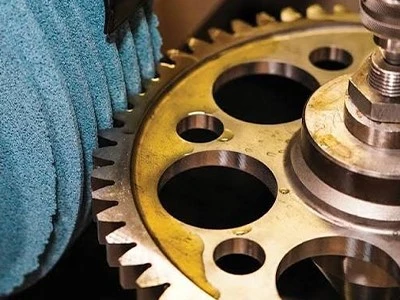

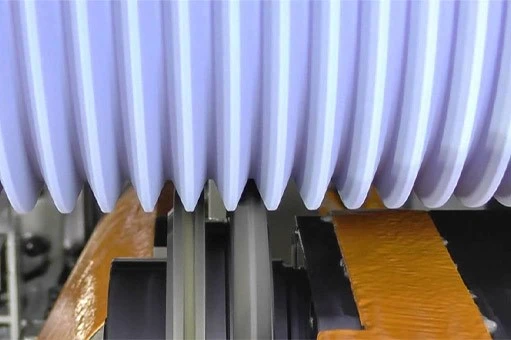

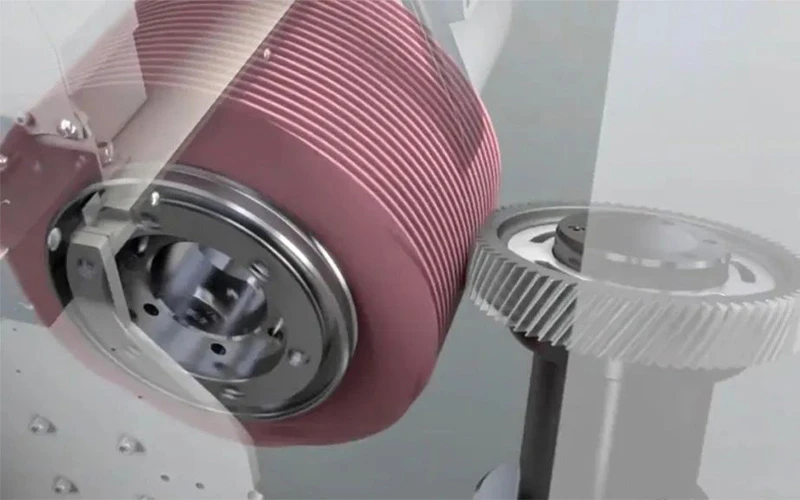

The primary applications include worm shaft grinding and worm gear grinding, particularly where the finished surface and profile have a direct influence on transmission performance.
They can be considered for applications involving:
Worm shafts requiring precision helical surface grinding
Worm gears requiring accurate tooth-form finishing
Transmission components where profile consistency is important
Precision mechanical parts requiring controlled surface roughness
Production grinding operations where repeatable wheel performance is required
The final wheel specification should be matched to the workpiece material, machine configuration, grinding method, required accuracy, and target surface finish.
Choosing the Right Wheel for Your Application
There is no single wheel specification that is ideal for every worm grinding application. The appropriate combination depends on several factors, including the workpiece material, worm geometry, machine type, grinding method, stock removal requirements, and required surface finish.
Before placing an order, it is useful to provide information such as the workpiece material, worm or gear dimensions, grinding machine, grinding method, required accuracy, and desired surface finish. This allows the wheel specification to be matched more closely to the actual working conditions.
For production applications, the grinding parameters should also be considered together with the wheel. Wheel speed, feed rate, dressing conditions, and coolant management can all influence the final grinding result.
Worm grinding wheels should be properly protected during storage and transportation to help prevent damage, deformation, or contamination. Product specifications can be prepared according to the customer's grinding equipment and application requirements.
For repeat orders, maintaining consistent wheel specifications is also important for production stability. Customers can provide previous wheel specifications or grinding-process information when requesting a quotation so that the required product can be identified more accurately.
Everything You Need to Know
Please feel free to contact customer service if you have any questions; we are here to assist you at any time.
What components can be ground with this wheel?
It is primarily intended for worm shafts and worm gears, especially applications requiring accurate helical profile grinding and controlled surface quality.
Can the wheel specification be matched to our grinding machine?
Yes. The wheel should be selected according to the machine, workpiece geometry, grinding method, and required grinding result. Providing these details helps determine a suitable specification.
What information should I provide when requesting a quotation?
Workpiece material, worm or gear dimensions, machine model, grinding method, required accuracy, target surface finish, and current wheel specification are useful starting points.
How can I improve grinding results with the same wheel?
Check wheel selection together with dressing conditions, wheel speed, feed rate, coolant delivery, and machine stability. These factors work together and can significantly affect the final result.
If you are looking for a worm grinding wheel for worm shafts, worm gears, or precision transmission components, send us your workpiece and machine details. We can discuss the required wheel characteristics and provide a solution suited to your grinding conditions.
