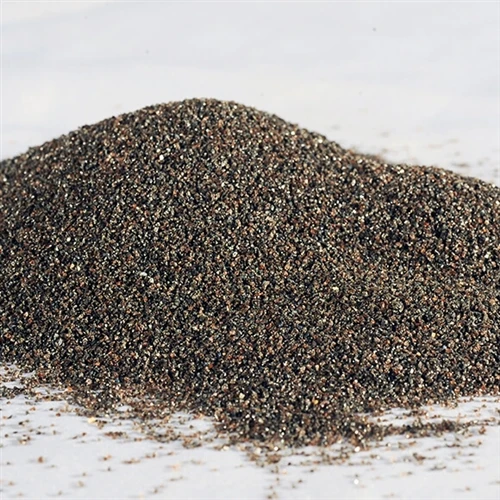

When buying brown aluminum oxide for refractory applications, don't focus on price alone. Three factors matter most: alumina content, grain size distribution, and impurity levels. Getting these right helps reduce cracking in refractory bricks and maintain reliable furnace lining service life.
What Alumina Content Should You Look For?
Higher alumina content generally means better high-temperature performance. Brown aluminum oxide is commonly classified into premium, first-grade, and second-grade materials based on alumina content. Premium and first-grade materials are generally preferred for refractory applications, while second-grade material is more suitable for areas with less demanding requirements.
| Grade | Alumina Content | Iron and Titanium Impurities | Typical Applications |
|---|---|---|---|
| Premium | Above 95% | Low; Fe₂O₃ below 0.35% | High-grade refractory bricks, steel ladle castables |
| First-grade | Above 93.5% | Moderate; Fe₂O₃ below 0.5% | General-purpose castables and refractory bricks |
| Second-grade | Above 90% | Relatively high | General refractory materials and wear-resistant flooring |
Remember one key figure: for high-temperature areas such as steel ladles and blast furnaces, alumina content should not fall below 95%. Even a two-percentage-point difference can affect high-temperature strength and shorten refractory lining service life.
How Should You Select the Grain Size Distribution?
Brown aluminum oxide for refractory applications is commonly supplied as graded grains, with four standard size ranges: 0–1 mm, 1–3 mm, 3–5 mm, and 5–8 mm. Coarse grains form the structural framework and provide strength, while finer grains fill the gaps between larger particles.
Using only one grain size is not recommended. An improper blend can leave excessive porosity in fired refractory bricks and reduce their strength. A common approach is to combine coarse, medium, and fine grains according to the formulation, then add fine powder of around 200 mesh to fill the remaining voids and achieve a well-graded mix.
What Happens When Impurity Levels Are Too High?
Iron and titanium are two important impurities to monitor. Excessive iron can promote the formation of low-melting-point phases at high temperatures, causing refractory bricks to soften during service. Excessive titanium can increase dimensional changes after firing, raising the risk of cracks in furnace linings.
Always check the inspection report for brown aluminum oxide. For premium-grade material, an Fe₂O₃ content below 0.35% is a useful reference. TiO₂ content typically falls within the range of 1.7%–3.4%.
If either value exceeds the limits specified for your application, a lower purchase price may not justify the risk. The savings on raw materials could easily be outweighed by the cost of an unplanned furnace shutdown and repairs.
When selecting brown aluminum oxide for refractory applications, choose material with at least 95% alumina for high-temperature zones, combine grain sizes from 0–1 mm to 5–8 mm according to the required formulation, and verify iron and titanium levels in the inspection report. Checking these three factors helps reduce material selection risks and improve refractory performance.
