You're shopping for sanding belts, and the supplier points to two options on the shelf:
"This ceramic abrasive belt costs twice as much as that aluminum oxide one."
You immediately wonder:
"They both grind metal. Why is the ceramic one so much more expensive? If I buy the cheaper one and simply replace it more often, wouldn't that be more cost-effective?"
This is a question that comes up every day in machine shops around the world.
Today, we're going to use both technical facts and real-world cost analysis to uncover where the price difference between ceramic abrasives and aluminum oxide abrasives (including brown fused alumina and white fused alumina) really comes from.
1. Different Origins: How Are They Made?
To understand why ceramic abrasives cost more, we first need to understand how they are manufactured.
Aluminum Oxide Abrasives: The Traditional Workhorse
Aluminum oxide, commonly known as fused alumina, includes products such as brown fused alumina and white fused alumina.
The manufacturing process is relatively traditional. Raw materials such as bauxite are melted in an electric arc furnace at extremely high temperatures. After cooling and crushing, the material is screened into different grit sizes.
Characteristics: High hardness and reasonable toughness. However, its microscopic structure is a single crystal. Think of it like a sugar cube-under pressure, it can withstand a certain amount of force, but once that limit is reached, it fractures as a whole.

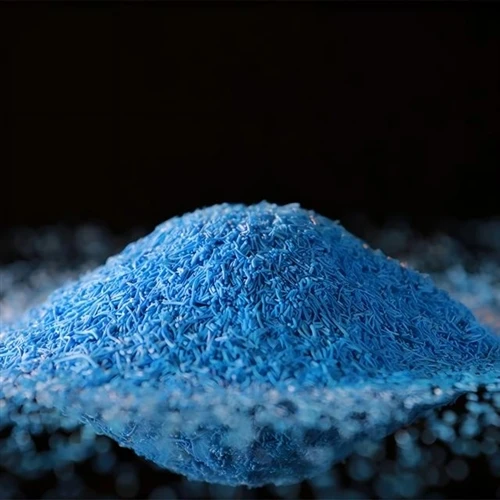

Ceramic Abrasives: The High-Tech Newcomer
The development of ceramic abrasives (SG or TG abrasives) represents a major technological breakthrough in abrasive manufacturing.
They are produced using a sol-gel process, in which countless microscopic or even nanoscale crystals are chemically bonded and sintered together to form a single abrasive grain.
Characteristics: Instead of being one solid crystal, each grain consists of thousands of tiny microcrystals. Imagine replacing a sugar cube with a compressed energy bar. It remains strong, but under pressure, layers of microcrystals gradually break away, continuously exposing new sharp cutting edges.
2. The Core Difference: The Microscopic Battle During Grinding
Why does a different grain structure create such a dramatic price difference? The answer lies in how the abrasives perform during grinding.
1. Self-Sharpening Ability: The Biggest Technological Divide
Aluminum Oxide Abrasives
Aluminum oxide abrasives experience what can be described as "overall wear."
As the grain becomes dull, it is difficult for a single-crystal structure to fracture in a way that exposes fresh cutting edges. Over time, the grain develops a flattened surface, friction increases, and temperatures rise until the entire grain is eventually pulled away from the sanding belt.
Result: The grain becomes dull long before it is fully consumed.
When operators say, "The belt just isn't cutting anymore," this is usually what they are experiencing.
Ceramic Abrasives
Ceramic abrasives possess a unique microcrystalline self-sharpening characteristic.
When one microcrystal becomes dull, the heat and grinding forces cause that specific microcrystal to break away, exposing a brand-new sharp microcrystal underneath.
Result: The abrasive remains consistently sharp throughout its service life.
It's like having a Swiss Army knife that never becomes dull-when one edge wears out, a fresh edge immediately takes its place.
2. Heat Resistance: Critical for Workpiece Protection
During high-speed grinding, heat is often the biggest enemy.
With aluminum oxide abrasives, once the grains become dull, friction increases rapidly. This can lead to surface burns, discoloration, and even microcracks in the workpiece-particularly when grinding stainless steel or titanium alloys.
Because ceramic abrasives stay sharp, they cut efficiently with less friction. As a result, heat generation is significantly reduced. Ceramic materials also offer excellent heat resistance, allowing much of the heat to leave with the chips rather than entering the workpiece.
This helps prevent thermal damage and protects the integrity of the material being processed.
3. Let's Do the Math: Are Ceramic Abrasives Really More Expensive?
Many shop owners think:
"Ceramic sanding belts cost two or three times more than aluminum oxide belts. They're too expensive."
But the real formula should be:
Total Cost = Abrasive Purchase Price ÷ (Service Life × Grinding Efficiency) + Labor Cost + Rework Cost
Let's compare a typical surface grinding application:
| Factor | Aluminum Oxide Belt | Ceramic Belt |
|---|---|---|
| Purchase Price | 1x | 2.5x |
| Service Life | Baseline (1x) | 3–8x longer (especially under heavy grinding pressure) |
| Grinding Efficiency | Baseline (1x) | 1.5–2x higher (faster feed rates possible) |
| Belt Change Frequency | Frequent (e.g., once per hour) | Very low (e.g., once per day) |
| Workpiece Yield | Risk of burns and scratches | Stable, significantly improved yield |
The Conclusion
If you only look at the purchase price, ceramic abrasives are undeniably more expensive.
However, if you calculate the consumable cost per finished workpiece, ceramic abrasives are often the more economical option.
And that's before considering the savings from reduced downtime, fewer belt changes, and lower scrap rates.
4. Which One Should You Choose?
Not every application requires ceramic abrasives. The key is choosing the right abrasive, not simply the most expensive one.
Choose Aluminum Oxide (Brown or White Fused Alumina) When:
- Grinding mild steel or cast iron.
- Performing light-pressure manual grinding.
- Working on fine finishing applications where surface quality is the primary concern (white fused alumina remains an excellent choice).
- Operating with a very limited budget and modest productivity requirements.
Choose Ceramic Abrasives When:
- Grinding difficult materials such as stainless steel (304, 316, etc.), titanium alloys, superalloys, or hardened tool steels.
- Performing heavy-duty grinding with high pressure and aggressive stock removal.
- Using robotic grinding systems, CNC grinders, or heavy-duty belt grinding equipment.
- Running automated production lines where abrasive consistency and service life are more important than initial purchase price. Fewer belt changes mean less downtime and higher productivity.
- Manufacturing high-value components such as aerospace parts, medical implants, or precision molds. Even a 1% scrap rate caused by grinding burns can cost far more than the abrasive itself.
Final Thoughts
Ceramic abrasives are more expensive because of the advanced technology built into their microscopic structure.
You're paying for their microcrystalline self-sharpening capability, their ability to remain sharp throughout the grinding process, and the savings they generate through reduced downtime, lower labor costs, and fewer rejected parts.
In today's world of high-efficiency and precision manufacturing, abrasives are no longer just consumables-they are the cutting edge of industrial productivity.
The next time you're choosing between sanding belts, ask yourself:
Do you need the cheapest sanding belt, or the one that can help you make more money?
