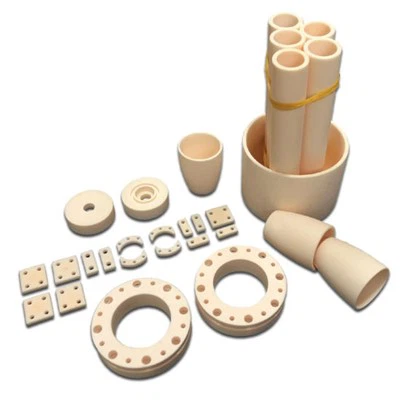

Alumina Ceramic Parts
Name: Alumina Ceramic Parts
Composition: Aluminum oxide
Size: Can be customized according to customer requirements
Payment:
30% T/T in advance for more than USD2000, balance pay before shipment.
100% T/T payment for amount less than USD2000.
Description
Alumina ceramic parts take Al2O3 as main raw material and use rare metal oxide as agent of fusion formed at a high temperature of over 1000 degrees. Alumina ceramic have high alumina content, denser structure and have special property, thus is also called for the special ceramics. Alumina ceramic material is a dense hexagonal structure composed of oxygen ion, and aluminum ions are filled in the two thirds of the octahedron gap, which is the same stable α-Al2O3 structure as natural corundum. Therefore, alumina ceramics have high melting point, high hardness and excellent wear resistance.
Our company has a large number of alumina ceramic products, which are roughly divided into two categories: One type is for ordinary use that includes plate, sheet, block, rod, shaft, column, tube, ring, sleeve and other ceramic material. Another type is the alumina ceramic parts and structures which are customized and designed according to the needs.
Product Specification:
| Item | unit | 99alumina | 95alumina | 92alumina |
| Bulk Density | g/cm3 ≥ | 3.85 | 3.65 | 3.6 |
| Flexural Strength | MPa ≥ | 350 | 300 | 280 |
| Max Use Temperature | °C ≥ | 1700 | 1500 | 1400 |
| Volume Resistivity | Ω·cm 20°C | 1015 | 1014 | 1014 |
Product Details:
1, High temperature resistance: It has high melting pointing, high boiling point, can be used at high temperature and not affected.
2, Not easy to corrosion: No matter in strong acid, strong alkali, inorganic or organic salt and other harsh conditions, it will not be affected.
3, No magnetic: It does not absorb dust and can reduce the surface peeling because the product material has no magenic.
4, Electrical insulation: It is a insulator at room temperature and has high resistivity, so it can be used in equipment which insulation is required.
Product Application:
Alumina ceramic is a kind of ceramic material with wide application, large output and high cost performance in oxide ceramics. It plays an important role in structural ceramics, refractory ceramics, optical ceramics, electronic ceramics and bioceramics. Alumina ceramic parts can be used in electrical appliances, mines, coal, industry, machinery, boiler, aviation, aerospace, electronics, precision casting industrial and other fields.
Product Packing:
FAQ:
Q: Samples are free?
A: Yes, we could provide samples with free of cost.
Q: How many days for sampling?
A: 7~10 days for regular size we have.
Q: How many days for production?
A: 30~60 days according to the size and quantity.
Q: Could we put our own logo?
A: Sure, customers logo can be made by laser engraved embossed transfer printing.
