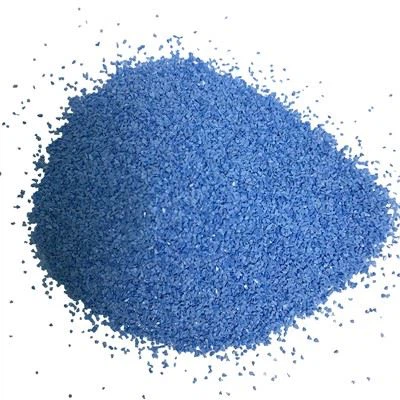

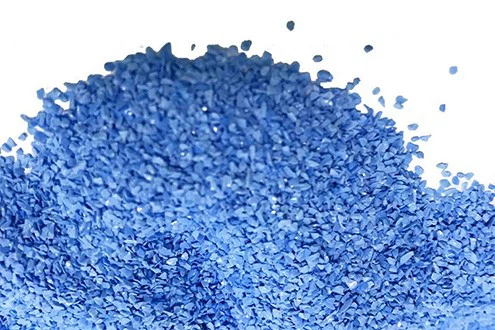

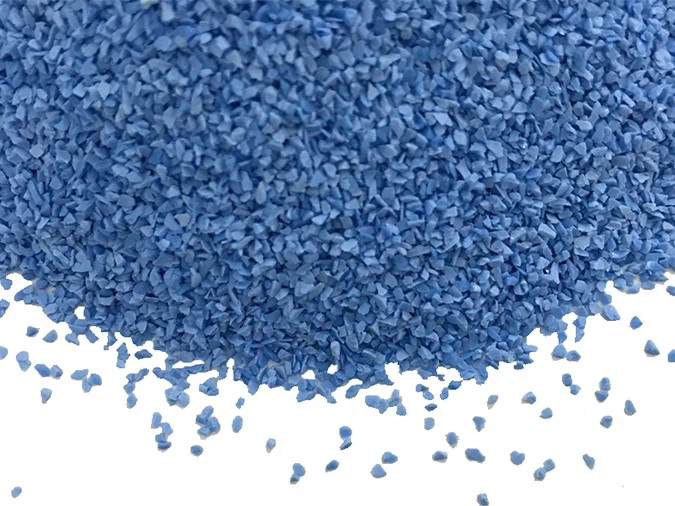

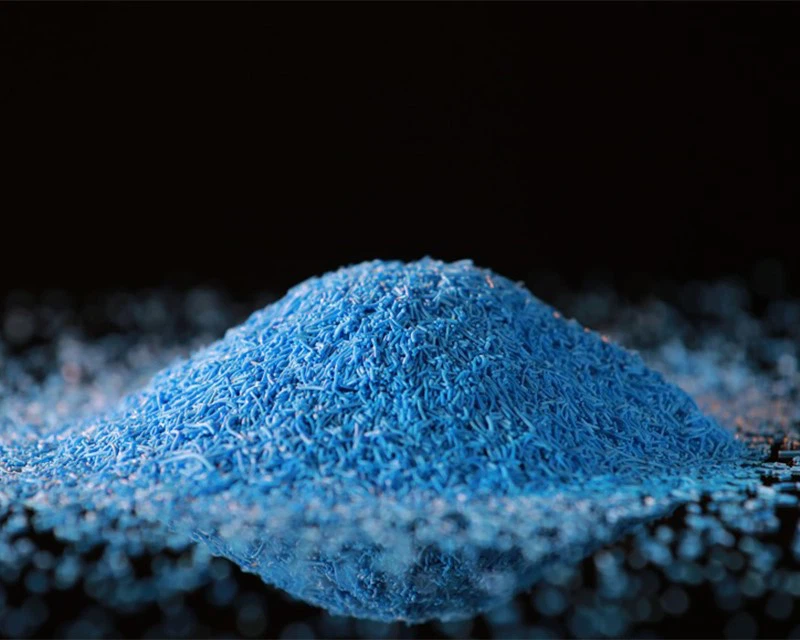

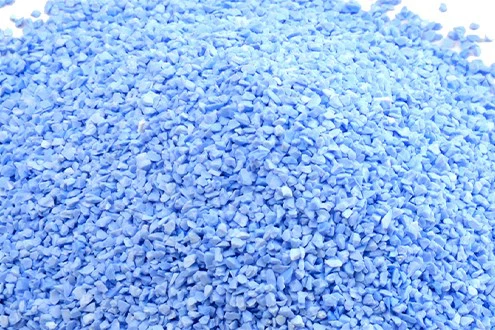

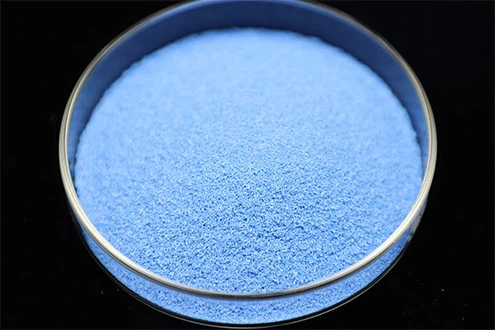

Blue Ceramic Abrasive Grains
Our blue ceramic abrasive grain is an advanced abrasive material engineered באמצעות sol-gel technology to meet the increasing demands of modern precision manufacturing. With its unique microcrystalline structure and superior mechanical properties, it is widely used in coated abrasives, bonded abrasives, polishing, and cutting tools, delivering outstanding performance when processing difficult-to-machine metals.
Description
Product Overview
Blue ceramic abrasive grain is designed to outperform conventional abrasives by combining high hardness, excellent toughness, and continuous self-sharpening ability. It is particularly suitable for high-pressure grinding environments where stability, efficiency, and tool life are critical.
Microstructure & Working Principle
Unlike traditional fused abrasives, this product features a highly refined internal structure composed of submicron crystals (100–500 nm). During grinding, the grain does not simply wear down-instead, it undergoes controlled micro-fracturing, continuously generating new sharp cutting edges.
Long-lasting sharpness
Consistent cutting force
Lower heat generation
Improved surface integrity of workpieces
product Specifications
We offer a wide range of specifications to meet different application requirements:
| Grit Sizes | F24 – F220 (custom sizes available upon request) |
| Color | Blue |
| Hardness | Comparable to fused alumina, with enhanced toughness |
| Bulk Density | High density for improved grinding stability |
| Crystal Size | 100–500 nm (microcrystalline structure) |
| Applications | Coated abrasives, bonded abrasives, polishing, cutting |
| Custom formulations and grain treatments can also be provided based on specific industrial needs. | |
Key Advantages of Blue Ceramic Abrasive Grain
Compared to conventional corundum abrasives, it has significant advantages.
High Efficiency & Continuous Self-Sharpening
The microcrystalline structure enables controlled micro-fracturing during grinding, constantly exposing new sharp edges. This ensures consistently high cutting performance, faster material removal, and reduced heat generation, even under heavy-load conditions.
Long Service Life & Excellent Wear Resistance
With superior toughness and structural integrity, blue ceramic abrasive grain significantly reduces wear and maintains tool shape. Abrasive tools can last 5–10 times longer than conventional fused alumina, minimizing downtime and replacement frequency.
Stable Performance with Lower Operating Costs
Its anti-loading properties and reduced dressing requirements (up to 30% less) help maintain stable grinding results over time. Combined with compatibility with standard equipment and lower cost compared to super abrasives, it delivers an excellent balance of performance and economy.
Comparison with Conventional Fused Alumina
| Feature | Blue Ceramic Abrasive Grain | Conventional Fused Alumina |
| Crystal Structure | Microcrystalline (nano-scale) | Coarse crystalline |
| Self-Sharpening | Continuous | Limited |
| Cutting Ability | High and consistent | Decreases over time |
| Toughness | Up to 2× higher | Standard |
| Service Life | 5–10× longer | Shorter |
| Heat Generation | Low | Higher |
| Dressing Frequency | Reduced (~30%) | Frequent |
| This comparison highlights why blue ceramic abrasive grain is increasingly preferred for high-performance grinding applications. | ||
Application Areas
Blue ceramic abrasive grain is ideal for manufacturing:
High-performance grinding wheels
Sanding discs and abrasive belts
Precision polishing tools
Industrial cutting solutions
It performs exceptionally well when machining:
Stainless steel
Alloy tool steel
Heat-resistant alloys
High-hardness metals
Widely used in industries such as automotive, aerospace, heavy machinery, and mold manufacturing, it supports both precision and high-efficiency production.
Everything You Need to Know
To help you better understand the performance and applications of blue ceramic abrasive grain, here are some of the most frequently asked questions from our customers:
What makes blue ceramic abrasive grain different from traditional abrasives?
Blue ceramic abrasive grain features a microcrystalline structure created by sol-gel technology, which allows continuous self-sharpening. Unlike traditional fused alumina, it maintains sharpness longer, delivers higher grinding efficiency, and provides a significantly extended service life.
What applications is blue ceramic abrasive grain best suited for?
It is ideal for use in coated abrasives, bonded abrasives, grinding wheels, sanding belts, and polishing tools. It performs exceptionally well when processing stainless steel, tool steel, and heat-resistant alloys.
Does blue ceramic abrasive grain require special equipment?
No, it can be used with standard grinding machines and does not require special dressing tools or grinding fluids. This makes it easy to integrate into existing production lines without additional investment.
How does it help reduce production costs?
Due to its long lifespan, high efficiency, and reduced dressing frequency, blue ceramic abrasive grain minimizes downtime, lowers tool replacement costs, and improves overall productivity-resulting in lower total operating costs.
Looking to enhance your grinding performance and reduce operational costs? Contact us today to learn more about our blue ceramic abrasive grain and get customized solutions tailored to your application. Request a quote now and take your production efficiency to the next level!
