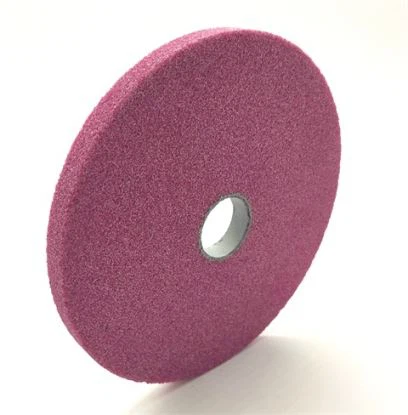

Pink Aluminum Oxide Grinding Wheel
Made with pink fused alumina and vitrified bonding, this pink aluminum oxide grinding wheel provides a sharp and consistent cutting action for precision grinding of ferrous metals, hardened steels, tools, dies, and other demanding components. The relatively friable abrasive grains can fracture under grinding pressure to expose fresh cutting edges, helping reduce glazing and maintain a responsive grinding surface. Depending on the wheel shape and specification, it can be used for surface grinding, cylindrical grinding, tool sharpening, profile grinding, and other precision operations where dimensional accuracy and surface finish are important.
Description
The pink aluminum oxide grinding wheel is a vitrified bonded abrasive wheel made with pink fused alumina, a high-purity form of aluminum oxide known for its hardness, friability, and sharp cutting action. Compared with conventional abrasive wheels, pink aluminum oxide is particularly suitable for applications where the grinding process requires a balance between efficient stock removal, wheel sharpness, and a clean finished surface.
Its characteristic rose-pink color comes from the composition of the fused alumina abrasive. The abrasive grains are firmly held within the vitrified bond, creating a rigid and dimensionally stable grinding structure. During operation, the grains fracture progressively to expose fresh cutting edges, helping the wheel maintain its grinding ability without relying solely on heavy dressing.
Product Specifications
Different wheel shapes, abrasive grades, and dimensions are available to suit common grinding machines and working conditions.
| Wheel Shape |
Common Dimensions
|
Typical Grit Range
|
Typical Applications
|
| Parallel / Straight Wheel | Ø150–500 mm × 10–80 mm | 24#–220# | Surface grinding, cylindrical grinding |
| Cup Wheel |
|
24#–180# |
|
| Bowl Wheel |
|
36#–180# | Profile grinding, tool sharpening |
| Dish / Saucer Wheel | Ø100–250 mm × 10–50 mm | 36#–180# | Cutter and tool grinding |
| Cylindrical Wheel | Ø100–400 mm × 20–100 mm | 24#–180# | External cylindrical grinding |
| Profile Wheel | Various profiles and sizes | 46#–220# | Form and precision grinding |
|
Common abrasive grades: 24#, 36#, 46#, 60#, 80#, 100#, 120#, 150#, 180#, 220# Common wheel specifications: |
|||
What Makes Pink Aluminum Oxide Grinding Wheels Different
The value of pink fused alumina lies in how the abrasive grain behaves during grinding, rather than simply in its distinctive color.
Sharp Cutting Edges for Controlled Grinding
Pink fused alumina has a relatively friable grain structure, allowing worn abrasive points to break away under suitable grinding pressure. Fresh cutting edges are then exposed, helping the wheel maintain an active grinding surface instead of continuously rubbing against the workpiece.
Better Suitability for Precision Work
The sharp and controlled cutting action makes pink aluminum oxide suitable for applications where dimensional accuracy and surface finish are important. With the right grit, grade, and dressing conditions, the wheel can provide a more consistent grinding result on hardened and alloy steels.
Reduced Tendency Toward Wheel Glazing
When a grinding wheel becomes glazed, the abrasive surface loses its cutting ability and begins to rub rather than cut efficiently. The friable nature of pink fused alumina helps the wheel renew its cutting points during operation, which can reduce the tendency toward glazing under appropriate grinding conditions.
Good Form Retention with Vitrified Bond
The vitrified bond provides a rigid supporting structure around the abrasive grains. This is particularly useful for grinding operations that require the wheel to maintain its geometry and deliver repeatable results over multiple dressing cycles.
Suitable for Fine Surface Finishing
Pink aluminum oxide can be used with finer grit specifications for finishing operations where a controlled scratch pattern and smoother surface are required. It is therefore useful not only for material removal but also for the final stages of precision grinding.
Flexible Across Different Wheel Designs
The abrasive can be incorporated into straight, cup, bowl, dish, cylindrical, and profile grinding wheels, allowing the same abrasive family to serve different machine configurations and grinding methods rather than being limited to one particular wheel shape.
Pink aluminum oxide grinding wheels can be used for a range of precision and general grinding operations, depending on the selected specification. Typical applications include:
Tool and cutter grinding for maintaining cutting edges and profiles
Precision grinding of hardened components where dimensional control is important
Surface grinding of suitable ferrous workpieces
Cylindrical grinding of shafts, pins, and similar components
Profile and form grinding where the wheel must retain its working shape
Finishing operations requiring a controlled and uniform surface
Die and mold component grinding where accuracy and surface condition are important
General workshop grinding when a pink aluminum oxide specification is appropriate for the workpiece
The actual suitability should always be determined by matching the wheel specification to the material and machine conditions rather than selecting the wheel based on color alone.
Surface Finish Depends on More Than the Wheel
Grinding results are influenced by several variables at the same time. Wheel speed, workpiece speed, infeed, traverse rate, dressing frequency, coolant delivery, and the condition of the machine can all affect the finished surface.
If the wheel specification is too hard for the application, the abrasive grains may remain in the wheel after their cutting ability has decreased, potentially leading to rubbing, increased grinding forces, or excessive heat. If the specification is too soft, the wheel may wear faster than expected.
Dressing is equally important. A properly dressed wheel presents active abrasive grains to the workpiece and helps restore the intended wheel geometry. For production grinding, the dressing method and frequency should therefore be considered when selecting the wheel specification.
Pink Aluminum Oxide vs. Conventional Aluminum Oxide
The difference is mainly in abrasive characteristics and application focus, not simply in appearance.
Select the appropriate abrasive
Pink aluminum oxide is a modified form of fused alumina developed for applications requiring a sharper and more friable abrasive behavior than some conventional aluminum oxide specifications. Its grain characteristics can make it attractive for precision grinding and applications where maintaining a fresh cutting action is important.
Conventional brown or white aluminum oxide wheels may be preferred for other grinding conditions depending on the material, stock removal requirement, hardness, and desired finish. There is no universally superior abrasive-the better choice is the one that matches the actual grinding process.
For this reason, we can recommend the abrasive grade and wheel specification based on the customer's workpiece material, machine, grinding method, and production requirements.
What Buyers Should Consider Before Ordering
Providing a few basic process details makes it much easier to select a wheel that performs consistently in production.
Before placing an industrial order, it is useful to confirm the following:
Workpiece material
Tell us whether you are grinding tool steel, hardened steel, alloy steel, or another material, together with its approximate hardness when available.
01
Grinding operation
Surface grinding, cylindrical grinding, internal grinding, tool grinding, profile grinding, and other operations can require different wheel specifications.
02
Machine information
The machine type, spindle speed, mounting method, and available wheel dimensions help determine a suitable wheel configuration.
03
Required finish
If surface roughness, dimensional tolerance, or a particular finishing requirement is important, this information can help us select the appropriate grit and wheel grade.
04
Production conditions
For continuous production, details such as grinding depth, feed rate, coolant use, and dressing method are useful when optimizing wheel performance.
05
Everything You Need to Know
These are the practical questions buyers often consider before selecting a pink aluminum oxide wheel.
Can pink aluminum oxide grinding wheels be used for hardened steel?
Yes, they can be suitable for certain hardened steel grinding applications, but the abrasive grade, grit, wheel hardness, and grinding parameters should be selected according to the actual material and hardness.
Can you manufacture wheels with non-standard dimensions?
Yes. Custom wheel dimensions, bore sizes, profiles, and other specifications can be discussed for specific machines and applications.
How do I choose between coarse and fine grit?
Start with the required result. Coarser grit is generally better suited to faster stock removal, while finer grit is normally considered when a smoother finish and more controlled finishing operation are required.
Can you recommend a wheel specification for my machine?
Yes. Send us the workpiece material, grinding operation, machine type, wheel size, spindle speed, and desired finish, and we can help evaluate a suitable specification.
For pink aluminum oxide grinding wheels in standard or customized configurations, contact us with your required dimensions and application details. We can discuss the abrasive grade, grit, bond, wheel structure, and other specifications for your grinding process.
