In grinding, you will often hear that vitrified grinding wheels are the preferred choice for precision finishing, high-volume production, and applications where consistent performance and long service life matter. But for many shop-floor operators, buyers, and new process engineers, one question remains: if they are all grinding wheels, what really sets vitrified, resinoid, and CBN grinding wheels apart?

01 What Is a Vitrified Grinding Wheel?

Simply put, a grinding wheel consists of three basic elements: abrasive grains, bond, and pores. A vitrified grinding wheel uses a vitrified, inorganic bond and is formed and fired at high temperature. It is one of the most widely used wheel types for precision and high-efficiency grinding.

Its key characteristics include high rigidity, excellent heat resistance, dimensional stability, uniform pore structure, and good self-sharpening performance.

02 Three Key Grinding Wheel Types Compared

① Resinoid Grinding Wheel - Versatile and Widely Used

Many cutting wheels, grinding discs, and wheels used with handheld grinders are made with a resinoid grinding wheel bond system.

Advantages:

Good toughness, strong impact resistance, lower cost, smooth grinding action, and broad application versatility.

Limitations:

Limited heat resistance: At high temperatures, the resin bond can soften or deteriorate, reducing grinding accuracy and wheel performance.

Faster wear and possible deformation: Heavy production work can consume the wheel more quickly, increasing the need for dressing or replacement.

Lower long-term precision stability: Extended grinding may result in uneven surface patterns or dimensional variation.

Best suited for: General-purpose grinding, cutting, rough grinding, non-precision applications, and cost-sensitive operations.

② CBN Grinding Wheel - Designed for Superabrasive Applications

CBN grinding wheels are commonly used with CBN abrasives and are valued for their excellent wear resistance and low wheel wear.

Advantages:

High strength, excellent wear resistance, good form retention, and suitability for profile and precision grinding.

Limitations:

Relatively poor self-sharpening, a tendency to load under certain conditions, limited heat dissipation in some applications, and more demanding dressing requirements.

Best suited for:

Hardened steels, carbide-related applications, superhard materials, profile grinding, and specialized high-precision operations.

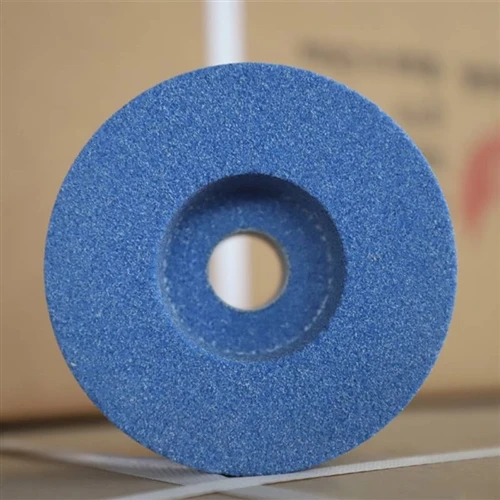

③ Vitrified Grinding Wheel - A Strong Choice for Precision Production Grinding

A vitrified grinding wheel addresses many of the limitations associated with resinoid and CBN grinding wheels, making it an increasingly popular option for upgrading production grinding processes.

Its main advantages are particularly valuable on the shop floor:

◆ Excellent heat resistance: It maintains its structure during high-speed and dry grinding, helping reduce the risk of thermal damage and discoloration.

◆ High rigidity and stable accuracy: It resists deformation during prolonged grinding, providing excellent dimensional consistency in mass production.

◆ Open and uniform pore structure: The pores help improve chip evacuation and heat dissipation, reducing loading. Open-structure wheels can work particularly well on aluminum, while properly selected vitrified wheels are effective for stainless steel grinding.

◆ Excellent self-sharpening: As abrasive grains become dull, they can release from the bond, exposing fresh cutting edges and extending the interval between dressing operations.

◆ Longer service life and lower overall cost: Although the initial price can be higher than a resinoid grinding wheel, slower wear, fewer wheel changes, and more consistent workpiece quality can reduce the overall cost per part.

The main limitation:

Vitrified wheels are relatively brittle and have lower impact resistance than resinoid wheels, so they are not the first choice for aggressive rough grinding or impact-heavy operations.

Selection Guide

For general grinding, cutting, and rough grinding, a resinoid grinding wheel is usually a practical choice.

For profile grinding of hard materials and superhard applications, a CBN grinding wheel is commonly considered.

For grinding operations that demand tight dimensional tolerances, high consistency, and stable performance in volume production, a vitrified grinding wheel is often the preferred option.

The final selection should always take into account the workpiece material, required finish and accuracy, machine capability, grinding parameters, and production volume.

04 When Is a Vitrified Grinding Wheel the Better Choice?

Many manufacturers hesitate to switch because vitrified wheels can have a higher purchase price. However, when total grinding costs are considered, the overall economics can often favor a vitrified grinding wheel, particularly in the following applications:

◆ Bearing rings - centerless, ID, and OD grinding: High dimensional consistency, controlled thermal damage, and uniform grinding patterns are essential.

◆ Precision tool grinding: Excellent edge finish is required, with minimal chipping and burr formation.

◆ Stainless steel and aluminum grinding: These materials can generate heat and tend to load the wheel, making effective chip evacuation and cooling especially important.

◆ High-volume production: Longer dressing intervals and fewer wheel changes can reduce downtime and increase throughput.

◆ High-speed grinding: Resinoid wheels may struggle under demanding high-temperature, high-speed conditions, while vitrified bonds are better suited to these environments.

Overall, resinoid, CBN, and vitrified grinding wheels each have their own strengths. There is no single wheel that is ideal for every grinding operation. The right choice depends on the workpiece material, required grinding accuracy, production volume, machine conditions, and specific process requirements.
